ASU Fiber Cable GYFFY 8 Core 100m Fiber Optic Cable Flame Retardant

Name: ASU Fiber Cable GYFFY 8 Core 100m Fiber Optic Cable Flame Retardant
Brand: PUNAISGD
Price: 1 USD

China ASU Fiber Cable GYFFY 8 Core 100m Fiber Optic Cable Flame Retardant wholesale

Brand Name : PUNAISGD

Model Number : ASU-8B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : 100m Fiber Optic Cable

Type : ASU-8B1.3

Laying Mode : Aerial

Jacket Material : PE

Installation : Self-supporting Aerial

Central Strength : FRP

Flame Retardant : Yes

Structure : Loose tube

Package : 3km/4km/5km Per Drum

Fiber : G652D, G657A1, G657A2

Central Strength Member : Non-Metallic

Contact Now

ASU Fiber Optic Cable (GYFFY) 8 Core 100m Span Cable

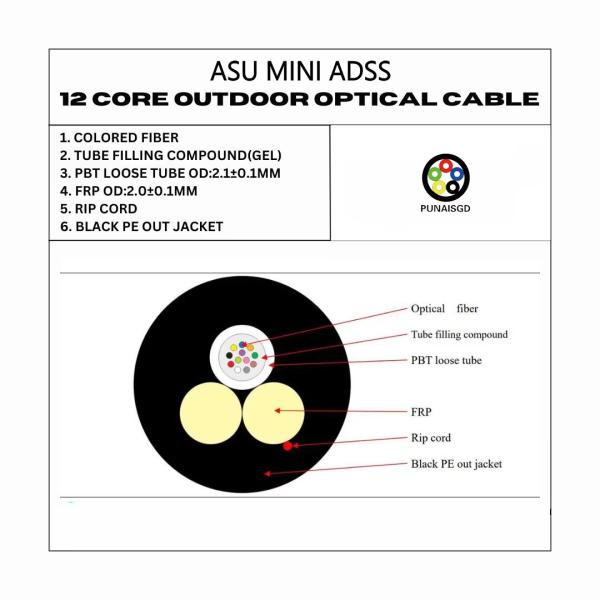

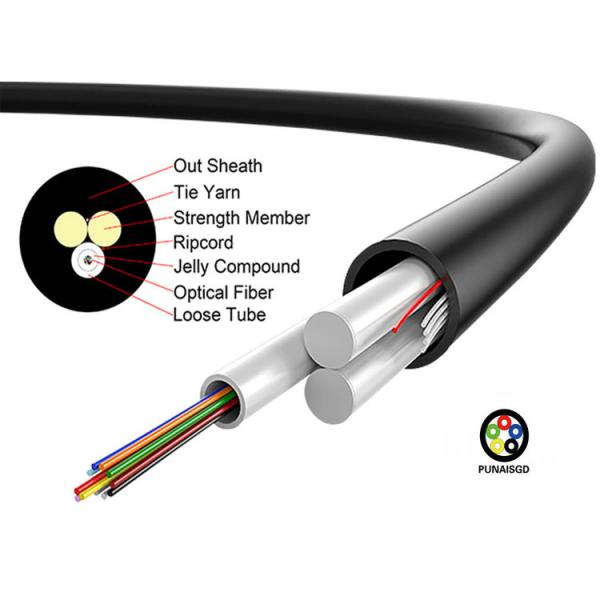

GYFFY is the structure of the access optical cable is to sheath 250 μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.

The ASU cable suits a wide range of applications.It's perfect for self-supporting aerial deployments in outside plant distribution and local network loop architectures.Its design and robustness make it the go-to choice for transitions from aerial networks to ducted or buried networks.

Constructed with G.652D single-mode optical fiber, the ASU cable is fully dielectric and incorporates a gel compound that repels water, ensuring the cable's watertight integrity. It also assures efficient transmission in the 1310 nm to 1550 nm wavelength range, compatible with Coarse Wavelength Division Multiplexed (CWDM) transmission.

In the competitive telecommunications market, selecting the right cable can be critical.For projects that do not necessitate the high density of ADSS cables, the ASU cable serves as an ideal solution.Its lighter weight compared to ADSS cables reduces installation costs and eases handling.

ASU Fiber Cable GYFFY 8 Core 100m Fiber Optic Cable Flame Retardant

PRODUCT SPECIFICATIONS

ITEMS	UNITS	SPECIFICATION
Fiber Type		G652D
Attenuation	dB/km	Before Cable	After Cable
		1310nm ≦ 0.34 1550nm ≦ 0.21	1310nm ≦ 0.35 1550nm ≦ 0.22
Chromatic Dispersion	ps/nm.km	1310nm ≦ 3.5 1550nm ≦ 18 1625nm ≦ 22
Attenuation Uniformity	dB/km	0.1
Point Discontinuities	dB	≤ 0.05
Zero Dispersion Slope	ps/n㎡.km	0.093
Zero Dispersion Wavelength	nm	1300~1324
PMDQ Link Design 1550	ps/km1/2	≤ 0.1
Cut-off Wavelength(λcc)	nm	≤ 1260
Attenuation vs. Bending(60mm*100turns)	dB	≤ 0.1 at 1625 nm (60mm * 100turns)
Mold Field Diameter	μm	9.2±0.4 @ 1310nm
		10.4±0.5@ 1550nm
Core-Clad Concerntricity	μm	≤ 0.6
Cladding Diameter	μm	125 ± 1
Cladding Non-circularity	%	≤ 1
Coating Diameter	μm	245 ± 5
Proof Test	Gpa	≥ 0.69

Optical Characteristics

Part code	ASU-120-6F
Number of Fibers	Unit	6	8	12	24
Number of fiber in tube	Nos	6	8	12	24
Number of loose tube	Nos	1	1	1	1
strength member	Material	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.3mm
Loose tube	Material	PBT
Loose tube	Size	2.2mm
Outer sheath	Material	HDPE	HDPE	HDPE	HDPE
Cable nominal Diameter	MM ±0.2	7.2	7.2	7.2	8.0
Cable nominal weight	Kg/Km ±5	45	45	45	47
Max. working tension	N	1500	1500	1500	1500
Max. crush resistance	N	1000 (Short term) / 600 (Long term)
Min. bending radius		At full load 20 x Cable OD (including poles) At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -10 -> +70
