ADSS Fiber Optic Cable Single Sheath Double ADSS Power Cable Span 100m 24 Core 48 Core Cable

Name: ADSS Fiber Optic Cable Single Sheath Double ADSS Power Cable Span 100m 24 Core 48 Core Cable
Brand: PUNAISGD
Price: 1 USD

China ADSS Fiber Optic Cable Single Sheath Double ADSS Power Cable Span 100m 24 Core 48 Core Cable wholesale

Brand Name : PUNAISGD

Model Number : ADSS-24B1.3-100M

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Type : ADSS-24B1.3-100M

Fiber Type : Single-mode G.652D

Model No : All Dielectric Cable

Strength Member : Aramid Yarn

Cable Model : single jacket 100m Span

Package : Wooden Drum/Customized

Cable Weight : 280 kg/km

Life Expectancy : 30 Years

Outer Diameter : 10.0mm

Name : ADSS Fiber Optic Cable

Contact Now

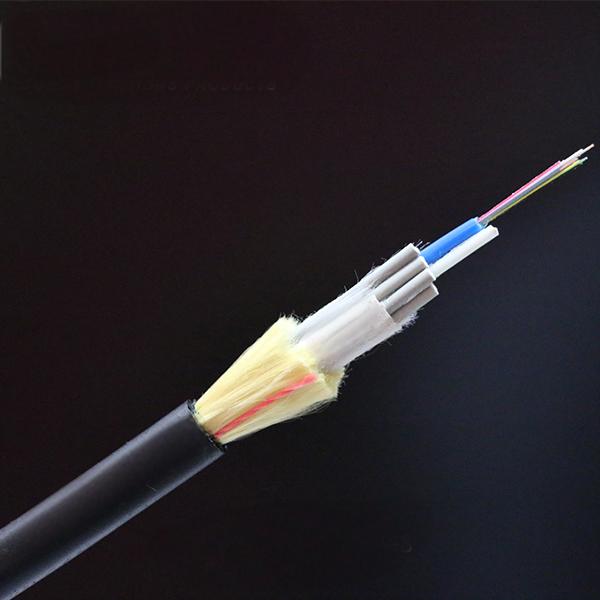

ADSS Fiber Optic Cable Single Sheath Double ADSS Power Cable Span 100m 24 Core 48 Core Cable

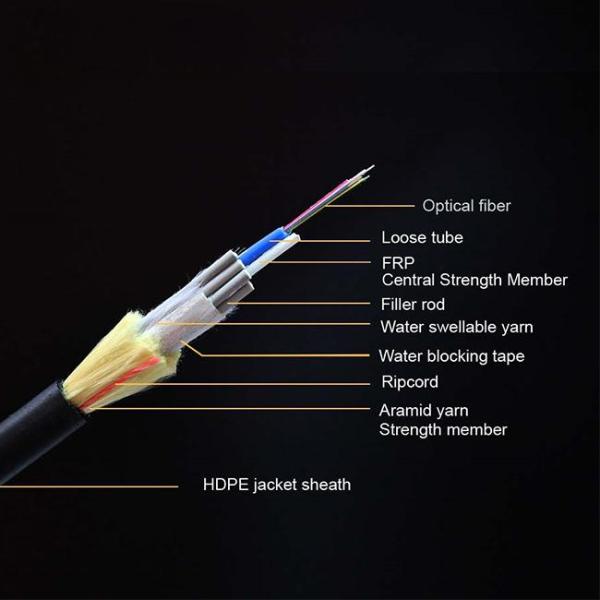

The All Dielectric Self-supporting (ADSS) Optical Fiber Cable is loose tube stranded Fiber cable, which is positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

ADSS Fiber Optic Cable Single Sheath Double ADSS Power Cable Span 100m 24 Core 48 Core Cable

PRODUCT SPECIFICATIONS

Fiber data

Fiber Type	Attenuation		1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
Fiber Type	@1310nm(dB/KM)	@1550nm(dB/KM)	1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450

Technical Parameters

Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	100m Span Tensile Strength (N)		Crush Resistance (N/100mm)		Bending Radius (mm)
Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	Long Term	Short Term	Long Term	Short Term	Static	Dynamic
2-12	9.8	80	1000	2500	300	1000	10D	20D
24	9.8	80	1000	2500	300	1000	10D	20D
36	9.8	80	1000	2500	300	1000	10D	20D
48	9.8	80	1000	2500	300	1000	10D	20D
72	10	80	1000	2500	300	1000	10D	20D
96	11.4	100	1000	2500	300	1000	10D	20D
144	14.2	150	1000	2500	300	1000	10D	20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation	Installation	Operation
-40℃~+70℃	-5℃~+45℃	-40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.

The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.

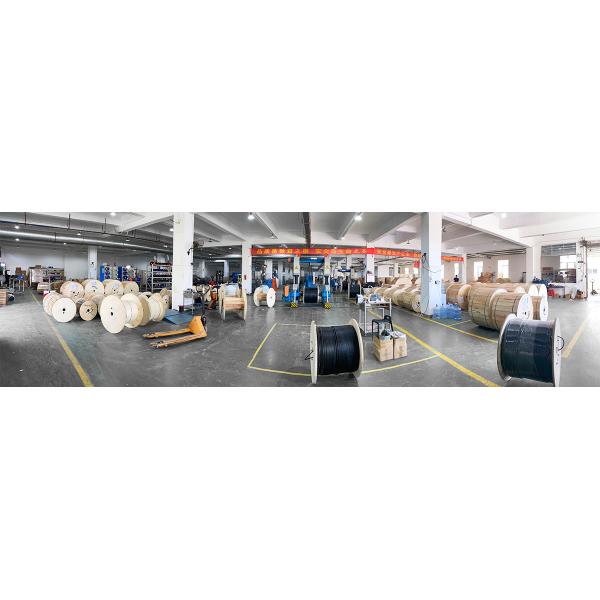

Factory veiw

Our Factory
