Brand Name : PUNAISGD
Model Number : ADSS-8B1.3
Certification : CE/ROHS/ISO9001
Place of Origin : Guangdong, China
MOQ : 1km
Price : negociate
Payment Terms : T/T,Western Union
Supply Ability : 100000
Delivery Time : 7days
Packaging Details : wooden drum
Name : ADSS Fiber Optic Cable G652D
Type : ADSS-8B1.3
Application : Telecom Comunication
Strength member : Aramid Yarn
Jacket color : Black Color/Others
Packing : Wooden Roller
Number of conductors : ≥ 10,1
Fiber type : G652D,OM3,G657A2,50/125,62.5/125
Outer sheath : PE/AT,AT/PE,PE
Span : 50 100 150 300 400 800M,100-150,80m 100m or customerized

ADSS cable is Loose Tube stranded fibers 250um, are positioned into a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as non-metallic strength member into a compact and circular cable core. After the cable core is filled with filling compound , it is covered with PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tacking) outer sheath.
ADSS double-Jacket all-dielectric self-supporting optical cable Features
l Can be installed without shutting off the power
l Light weight and SMall diameter reducing the load caused by ice and wind and the load on towers and back props.
l Large span length and the largest span is over 1000m
l Good performance of tensile strength and temperature
l Long span life, over 30 years
Application:
Aerial for power cable transmission line.








|
|

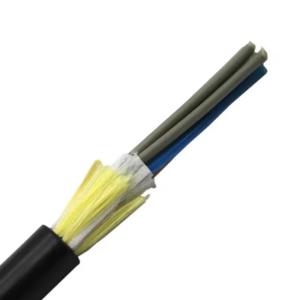

Aerial ADSS Fiber Optic Cable G652D Double Jacket All Dielectric Self Supporting Cable Images |
